Insulating cardboard hot press machine

Transformer Insulating Cardboard) Hydraulic Hot Press Machine

Description
Inquiry

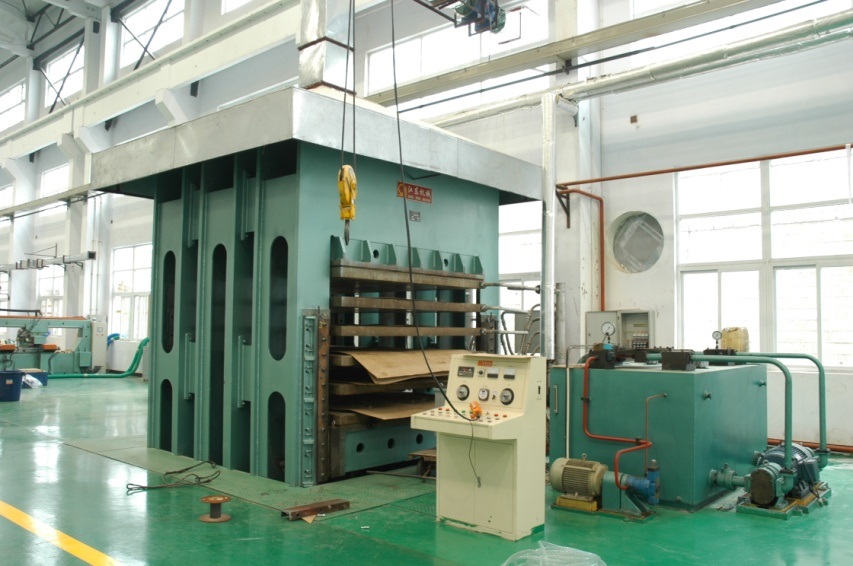

Transformer Insulating Cardboard) Hydraulic Hot Press Machine

The machine is specially designed for forming transformer pressboard, electrical insulation laminated wood and spacer strips. It can be equipped with a hydraulic operation platform.

Pressing plate evenness≤0.2mm; Even heating area, temperature <+/-1℃.

So far, we made hot press machine for transformer factories like ABB, SIEMENS, TBEA, HYOSUNG etc.

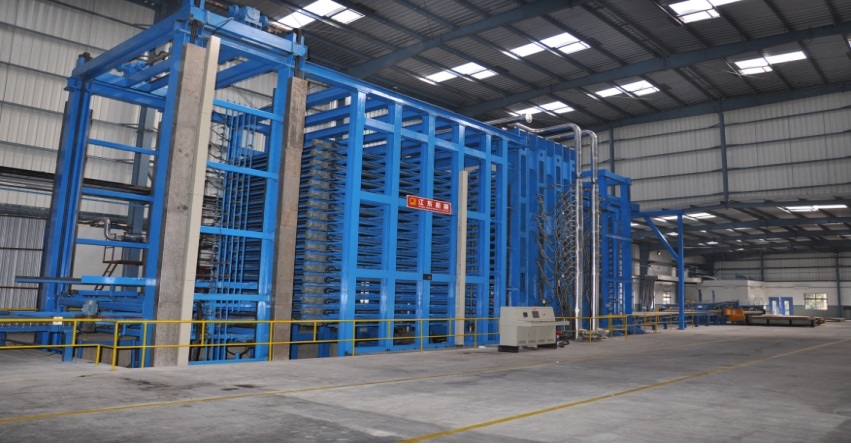

3500T hydraulic hot press machine for ABB transformer India

Main structure of hydraulic hot press machine:

1. Machine mechanical body;

2. Hot plate;

3. Hydraulic and pipe system;

4. Heating system (steam heating, or thermal oil heating);

5. Electrical control system (with SIEMENS PLC and HMI);

6. Operation platform (optional).

Insulating cardboard hot press machine type and specification:

(Suitable for transformer factories, or Insulations pressboard manufacturers)

Type	Nominal pressure (kN)	Hot plate size (mm)	Layers	Interlayer space (mm)
BY916	14000	20002000110	5	140
BY9171	16000	21002100100	3	200
BY9172	20000	2200250090	6	200
BY9181	25000	25002500110	4	200
BY9182	25000	25003200100	6	200
BY9110	35000	32003200120	6	200
