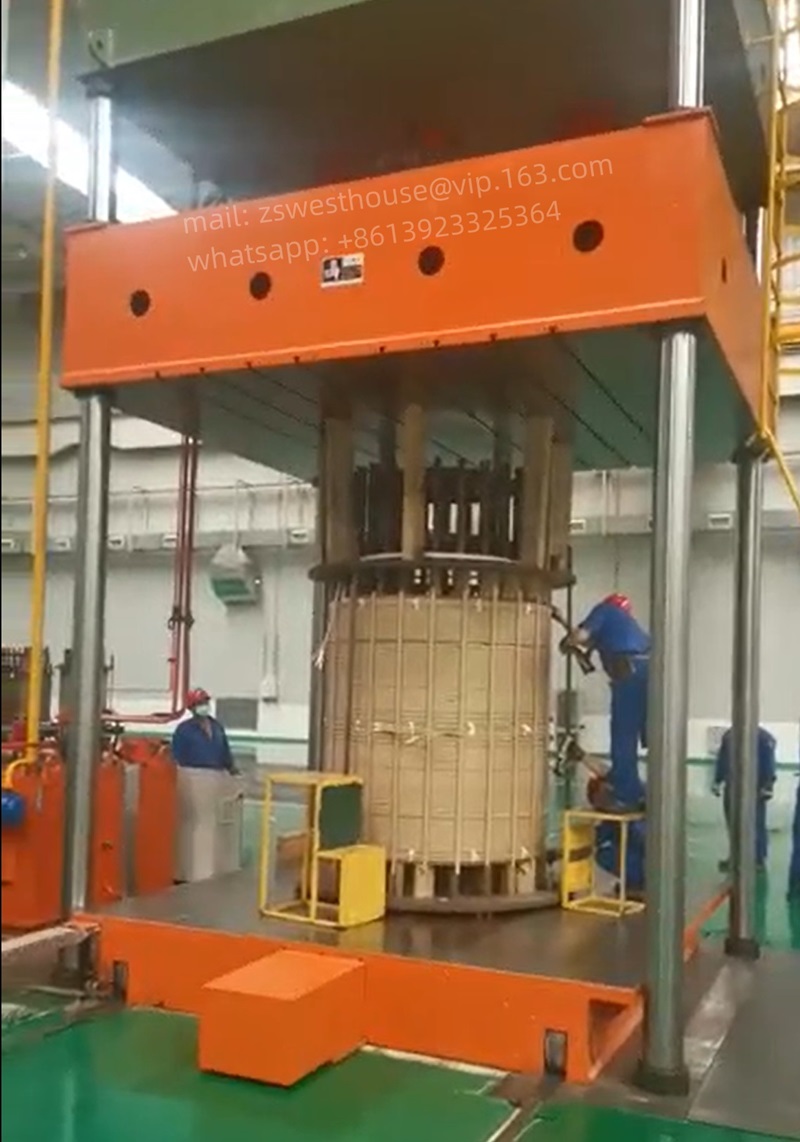

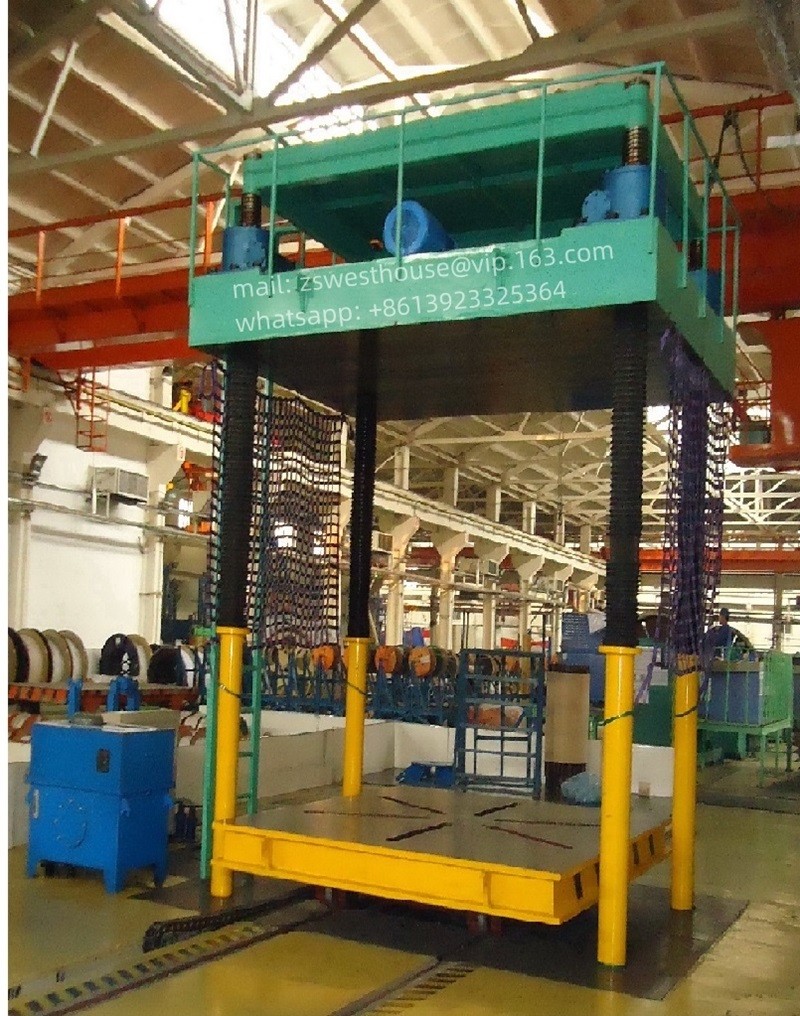

Transformer Coil Hydraulic Pressing Machine

The Transformer coils are designed for a specific Winding Length. Length of the winding increases due to the gap in each disc. In order to maintain the length within the design parameter, the coil shall be pressed by applying the designed or specified pressure.

The machine is specially designed for transformer coil (big, medium and small) pressing. It is an essential machine for transformer production, particularly for power transformer above 110KV.


FEATURES:

1.WINDOW HEIGHT IS ADJUSTED BY MOTOR. DIGITALLY DISPLAY PRESSURE AND COIL HEIGHT.

2.ONE BIG HYDRAULIC CYLINDER UP STROKING; ADVANCED AND STABLE HYDRAULIC SYSTEM.

3.WITH MOTORIZED TROLLEY, IT IS VERY EASY FOR COIL TRANSPORT.

4.WITH PLC AND TOUCH SCREEN.

MAIN STRUCTURE OF HYDRAULIC COIL PRESS MACHINE

1.MACHINE MECHANICAL BODY;

2.PRESSING PLATEN;

3.MOTORIZED TROLLEY(FOR COIL TRANSPORT);

4.HYDRAULIC CYLINDER AND HYDRAULIC SYSTEM;

5.FORCE MEASURING DEVICE;

6.LUBRICATION SYSTEM;

7.ELECTRICAL CONTROL SYSTEM (WITH SIEMENS PLC AND HMI)

ITEM	UNIT	RANGE
NOMINAL FORCE	KN	630-3000
MAX. OIL PRESSURE	MPA	6.3-10
COIL HEIGHT CAN BE REDUCED	MM	0-800
SPEED OF PRESSING	MM/S	0.5-10
RANGE OF WINDOW HEIGHT ( ALLOWED COIL HEIGHT)	MM	800-4200
PLATEN SIZE	MM	15001500 TO 3200 3200
