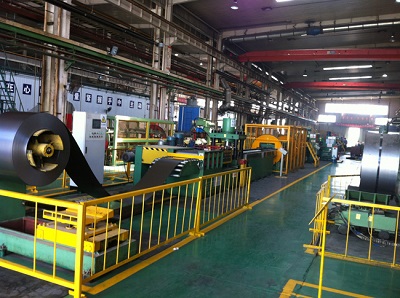

Transformer Corrugation wall Production Line

Transformer Corrugated fin forming machine

Description
Inquiry

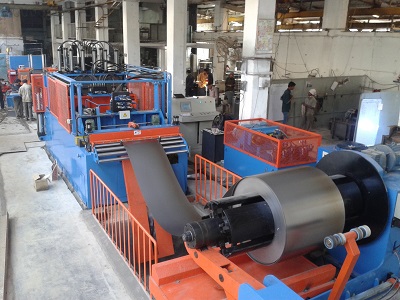

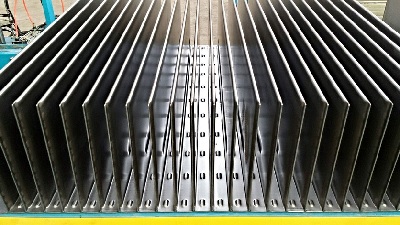

Transformer Corrugated fin forming machine

Parameters of Our Transformer Corrugated Fin Forming Machine

1) Plate width: 300mm-1300mm (according to customer’s needs)

2) Corrugation height: 50mm-400mm

3) Corrugation pitch: >=40mm

4) Plate thickness: 0.5mm-1.75mm

5) Forming speed: 3-4fins/min

6) Number of pumps: 2 (two separate plunger pumps)

7) Control system: electrical, hydraulic and control board

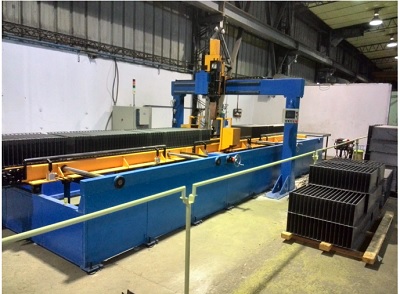

Corrugated Fin Automatic Welding Machine
Introduction of Corrugated Fin Automatic Welding Machine

The welding device is used to weld the corrugation ends edges with TIG welding mode. It consists of corrugated steel sheet conveying mechanism, welding torches elevating mechanism, amplitude modulation mechanism and one machine hand.

1) Corrugated steel sheet conveying mechanism: It can transport the corrugated steel sheet to the right welding position according to welding program.

2) Welding clamps and welding torches elevating mechanism: Each pair of welding clamps is driven by an air cylinder via link drive mechanism to hold and release the workpiece. The welding torches are mounted on slide which is driven by servo motor up and down along rolling guide via ball screw shaft.

3) Amplitude modulation mechanism: Two sets of welding clamps and welding torch moving mechanisms mounted on slide are arranged on both side of the line. Distance between the two slides is adjustable along the rolling guide with a centering lead screw.
4) Machine hand
In case of missing seam welding, we use the machine hand to push corrugated fin to the welding position, and this machine hand is driven by air cylinder.

Auto welders:

Two sets of Panasonic Welders are installed in the line.
