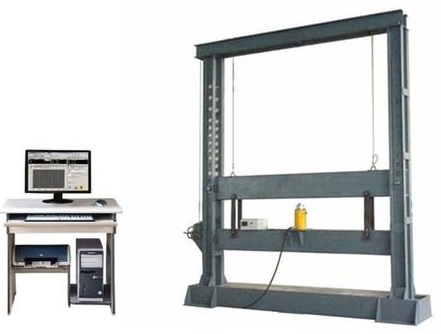

Three edge bearing test for reinforced concrete pipe

1. Overview:

The external pressure test device for concrete and reinforced concrete drainage pipes is based on the national standards "Concrete and reinforced concrete drainage pipes" (GB/T 11836-99) and "Test methods for concrete and reinforced concrete drainage pipes" (GB/T 16752-2010) Developed in accordance with regulations, it adopts the three-point compression mode, which is mainly suitable for the external pressure test of concrete and reinforced concrete drainage pipes.

2. Main features

Computer control to complete the test automatically, with good reliability and high test accuracy

With force closed loop control function, it can realize constant load rate or constant stress rate loading

Test loading speed, load, strength, maximum peak value and force loading curve are displayed on the computer screen in real time

Automatic collection and processing of test data, automatic calculation of results and output of standard test reports

With overload protection function, that is, 2% of the force value exceeds the full range, automatic shutdown and power-off function

• The instrument design strictly complies with national standards, and the test display value is accurate. It is the first choice of various quality inspection departments;

•The distance between the hardwood supports of the instrument is adjustable and can be adjusted quickly according to the specific conditions of the test piece;

• The instrument is atmospheric and beautiful, the design is accurate, and the loading pressure is up to 1000KN.

3.Technical data:

1. Loading pressure: 1000KN

3.Suitable test pipe size: diameter: 200-1800mm; length:1500mm

4. Loading method: electric pump

5. Force value display mode: computer display

6. Accuracy level: level 1

7. The force value is directly displayed in KN value, eliminating the trouble of force value calculation.

8. The machine base is made of concrete and is flush with the ground, which is convenient for putting in various mouth-shaped drain pipes.

9. Test force display mode: digital display, peak value display.

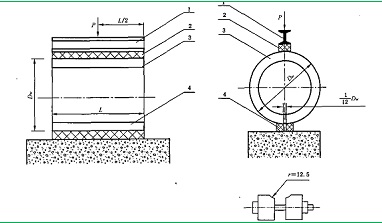

10. Hardwood support fillet: R=12.5mm

11. Hardwood support spacing: adjustable
