Potential Transformers Coil Winding machine

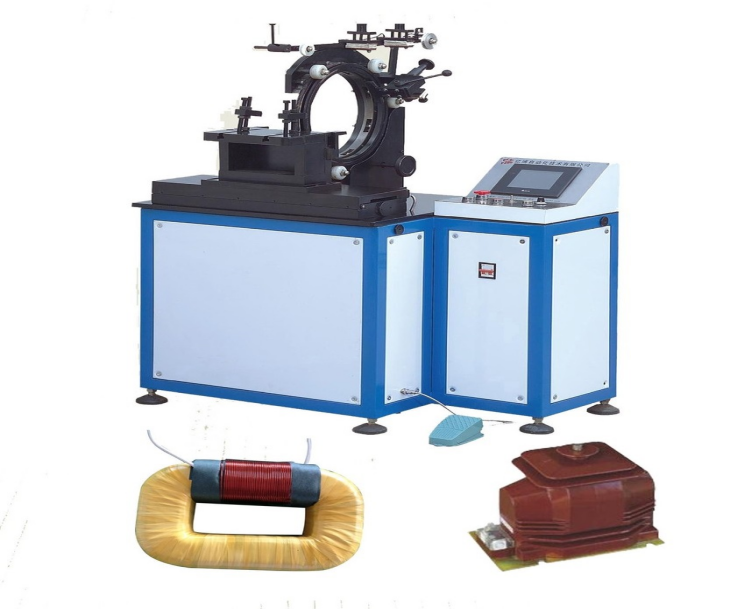

YMDY-230 Fully enclosed primary winding machine for voltage transformer

Product Description:

YMDY-230 Fully enclosed primary winding machine for voltage transformer

Main technical data：

Model	YMDY-230
Diameter of enameled wire(applicable QZ-2 wire size)	Φ0.1～1.5mm
Max.diameter of coil	Φ230mm
Min. diameter of coil	Φ50mm
Maximum winding width	210mm
Winding speed range	1390rpm
Machine power	1.5KW
Input voltage	220V±10％
Machine size	13605601320mm

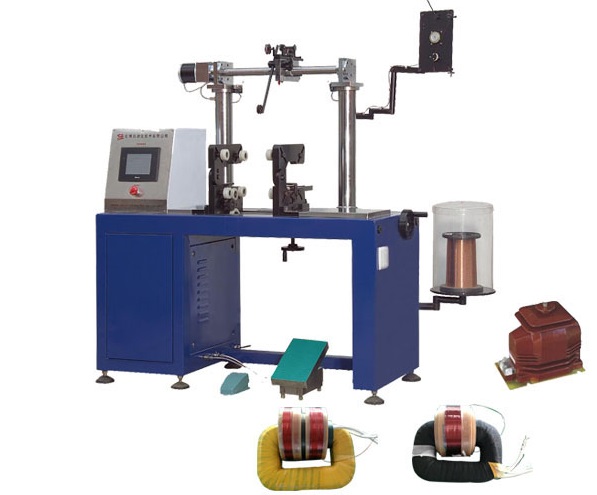

YMDR-360-Fully enclosed secondary winding machine for voltage transformer

Main technical data：

Model	YMDR-360
Diameter of enameled wire (applicable wire size)	Φ0.5～2.6mm
Maximum horizontal movement distance of worktable	Φ370mm
Maximum longitudinal movement distance of worktable	Φ200mm
Max outer diameter of wound secondary coils	120mm
Winding rotation speed range	100RPM
Machine power	0.75KW
Input voltage for machine	220V±10％
Machine size	6305501390mm
