Motor Coil Winding machine

1.Main features: winding shelf has two: pneumatic shelf and manual shelf.

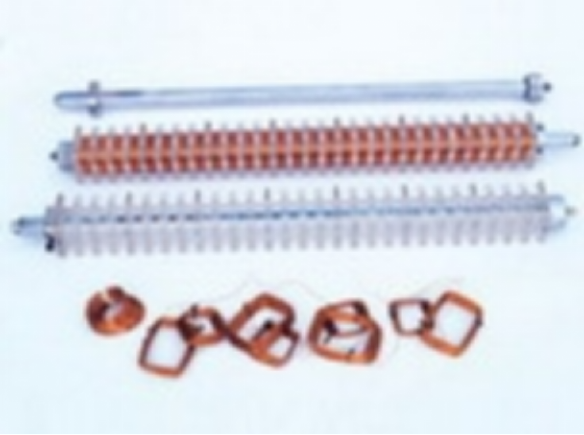

This machine can be made more continuous, multilayer coil automatically winding, once can wind 1-8 coils at the same time, can also be automated continuous jump slot to next slot, in each action can be completed 1-32 coil in wire axis efficiency length. There are two shaft alternately use, can wind coil diameter 25mm-180mm, high efficiency.

2.The main configuration:

1. Winding head equipped with 8 extension header, this winding head’s length and elevation can be adjusted convenience

2. has moving wire shelf(with 8 group wire shelf + 8 diameter for ∮210mmx300mm wire barrel)

3.with 2pieces axis 16x16x630mm

4.wire shelf 800x800x780mm

3. Application:

Industrial motors, air conditioners motor, washing machine motors, fan motors and so on.

Parameter:

Wire size	0.1-0.45mm
Winding width	180mm
Max.speed	0-3000turns/minutes
Power source	220V50Hz
Main axis motor	AC1/2 three phase motor +1HPtransducer
Winding motor	Stepping motor
Machine size	1300X900X1230mm
Packing size	1350x1400x1280
Net weight	200kg
Gross weight	240kg
