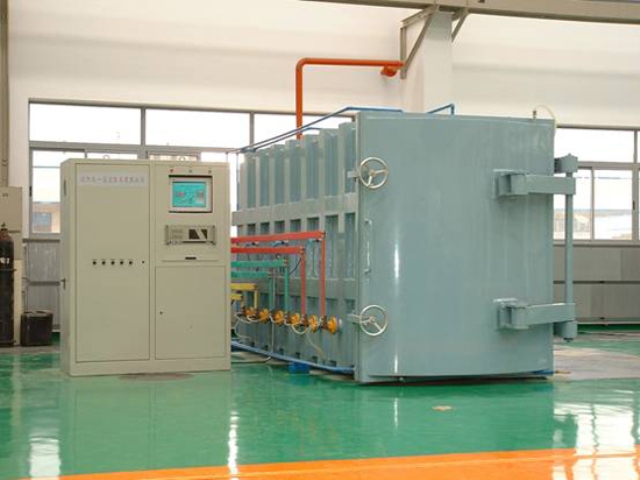

Transformer Wound core annealing Furnace



We produce variant type of (vacuum) furnace for transformer core annealing.

Furnace size can be designed per customer’ demand.

Main technical data:

Advantages:

1.Annealing under vacuum condition, no silicon core oxidation problem;

2.Oven loading capacity is big; oven (2000mm×1000mm×1200mm) can hold 5 tons material.

3.Energy saving. Annealing cycle is short, 5 tons material, annealing time is around 24hrs;

4.Cooling is fast, there is air-circulation cooling and cooling water.

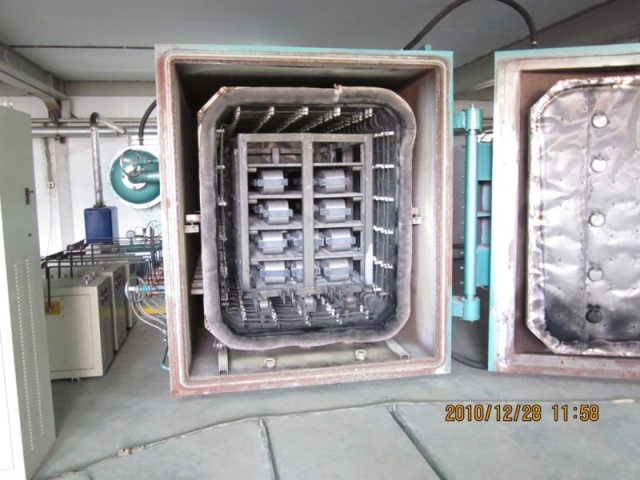

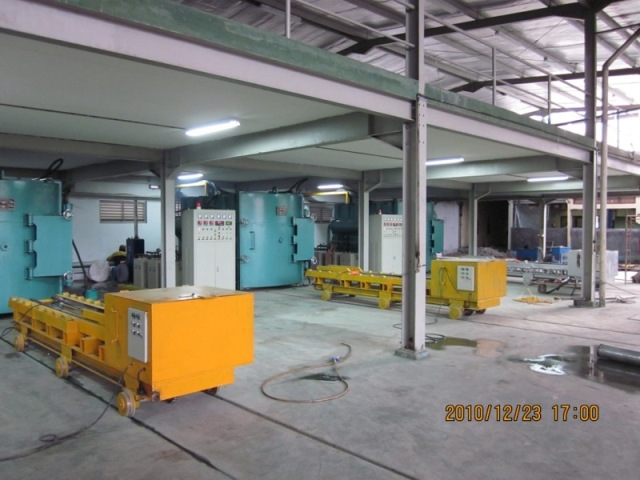

5.Horizontal oven with motorized trolley, easy for operation.

6.Different program can be set for different loading.

Operation Steps:

1. Load material on motorized trolley;

2. Drive trolley into annealing furnace;

3. Close furnace door

4. Start vacuum pump

5. Connect cooling water to furnace body

6. Start heating process per pre-setting program

(Temperature rising, temperature maintaining, temperature reducing)

7. Stop vacuum pump after temperature-reducing

8. Inject Nitrogen (N2)

9. Connect cooling water to heat exchanger

10. Start circulation blower to cool core fast.

11. Close circulation blower, close cooling water, and take material out of furnace.
