China Amorphous Ribbon Shearing Line

The product line is used for shearing and stacking of ribbon amorphous alloys.

Description
Inquiry

Amorphous Ribbon Shearing Line

The product line is used for shearing and stacking of ribbon amorphous alloys.

The product line is employed in high capacity PLC control,operationg system by serve motor,touch-screen and human-computer inter face and high precision transmission structure.

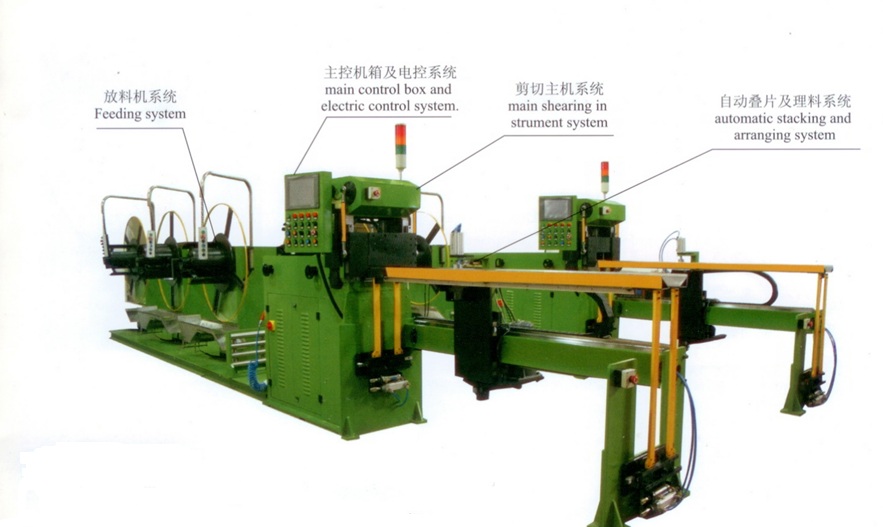

The components of product line

The product line is made up of feeder system,main shearing instrument system,automatic stacking and arranging system,main control box and electric control system.

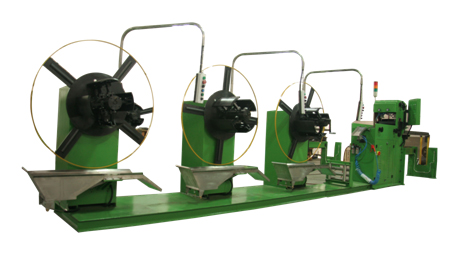

Feeding system

It is equipped with three feeders,and can be used not only individually but also operated with main shearing instrument system jointly.

Each feeder adopts stepless speed regulation control by transducer and automatic tracking control.

Technical specification

Cutting length	300-3500mm	Height of shearing core window	150-850mm
Cutting width	140-220mm	Width of shearing core window	30-450mm
Cutting thickness	The thickest have 15 layers（per layer was 0.025mm）	Thickness of shearing core window	25-130mm
Cutting speed	0-30times/min	Precision of shearing of length	+/- 0.5mm
Feed speed	5-90m/min	Position accuracy of stacking	+/-0.5mm

Main shearing instrument system

Feeding is driven by MSMA serve motor,and the upper feed roller is controlled by two cylinders with its pressure adjustable between 0 and 0.7Mpal.

The head and body of the product line from detachable integrated structure,which is easy for main tenance.

The cutting part adopt rolling guideway and high power serve motor and crank shift link mechanism to achieve precise shearing.

Main control box and electric control system

The whole product line is operated by the main box.

Giving material in ,cutting and stacking can be realized automatically when it is equipped with PLC intelligent control system.

It is safe to set several scram buttons on the main control box.

The pneumatic operation of each part is controlled by program adjustably.

Automatic stacking and arranging system.

Linear motion of laminated platform is achieved by serve motor via speed-change mechanism,gear and rack. The laminated platform is positioned by preset program to meet demand of different amorphous core.

Thickness of lamination in vertical is controlled by cylinder hold-down mechanism with limit,which could be lowered to meet demand of cores.
