Pulse Capacitor

The M*F series pulse capacitors use an oil-impregnated foil design with aluminum foil as the plates and capacitor film and paper as the dielectric. They go through vacuum treatment and are impregnated with high-performance insulating oil. This makes them have low inductance and resistance, and they can handle high peak currents and reverse peak voltages. Depending on your needs, the external structure can be a metal shell, insulating plastic shell, epoxy plastic shell, or epoxy glass fiber tube cylinder shell. These capacitors meet the JB/T 8168-2023 standards for pulse and DC capacitors.

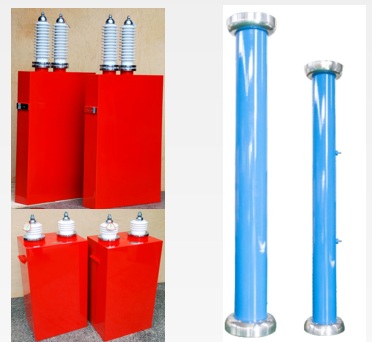

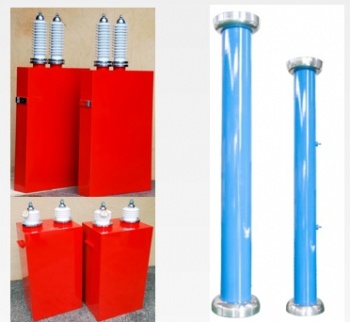

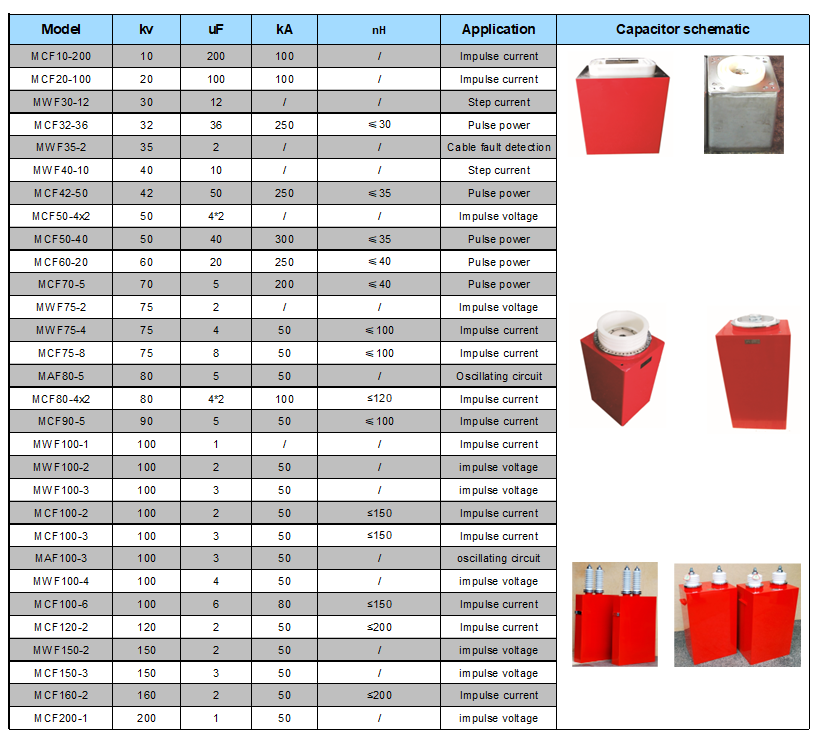

1. Pulse capacitor with metal tank

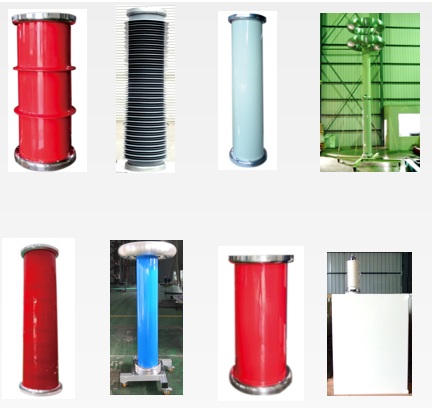

2. Pulse capacitor with insulating cylinder

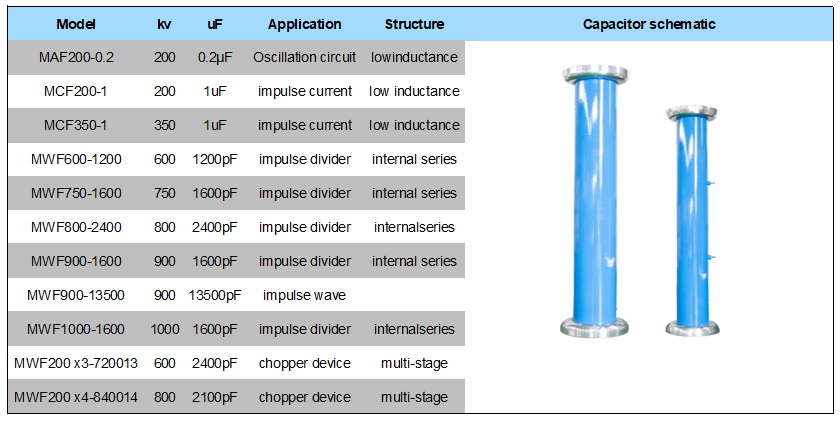

3. Coaxial leading  low inductance  impulse capacitor

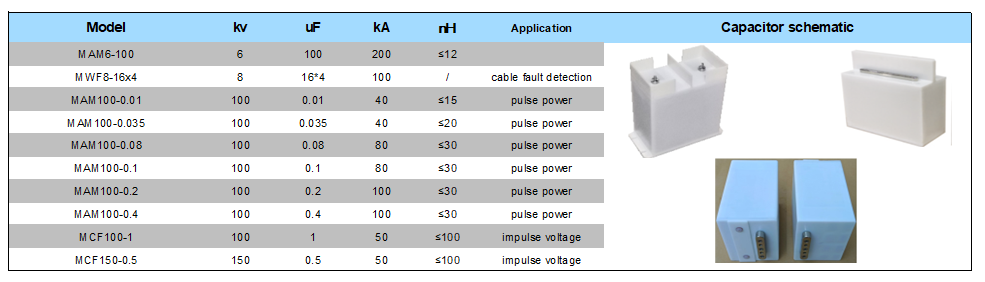

2.Pulse capacitor with plastic tank

3.Pulse capacitor with insulating cylinder

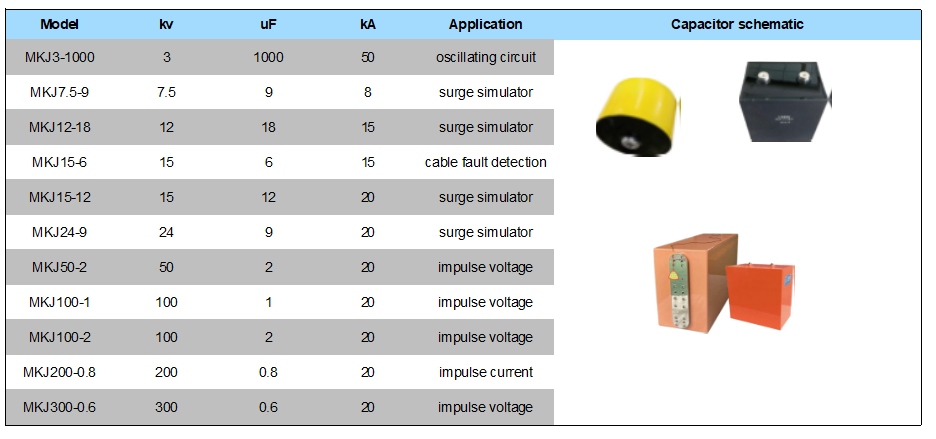

4.MKJ series pulse capacitor

Dry-type metallized film capacitor. The core is composed of metallized film elements in series and parallel,

and packaged by flame-「etardant epoxy resin. Tank can be metal or insulating. High energy storage density.

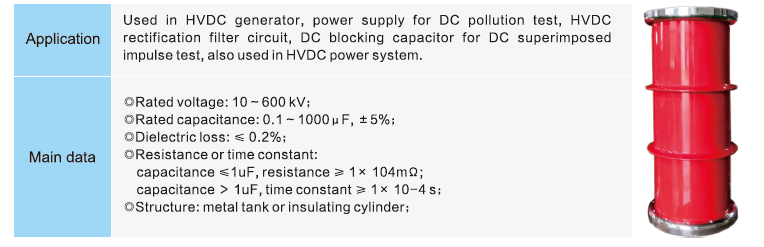

5.DC Capacitor

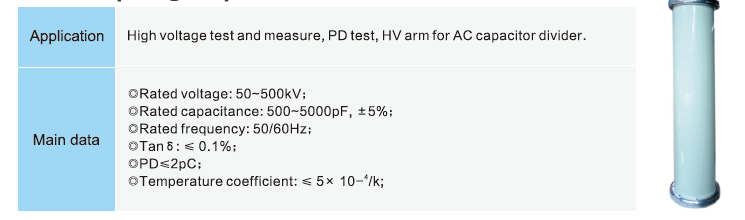

6.Coupling Capacitor

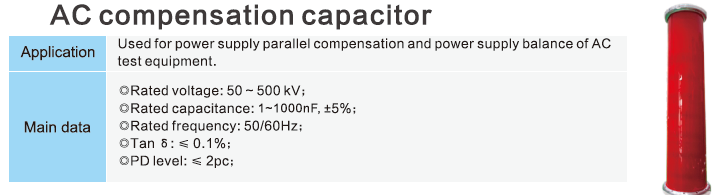

7.AC Compensation Capacitor

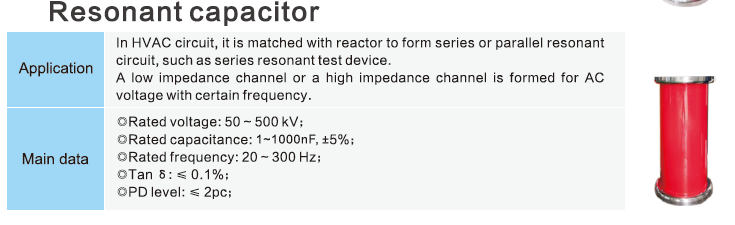

8.Resonant Capacitor:
