Voltage Divider
Voltage Divider

Voltage Divider

RC divider
Used for waveform measure of single, combined and compound voltage from AC, DC, LI and SI. and used for voltage measure of TRV, SLF, switch arc in the large-capacity test system.

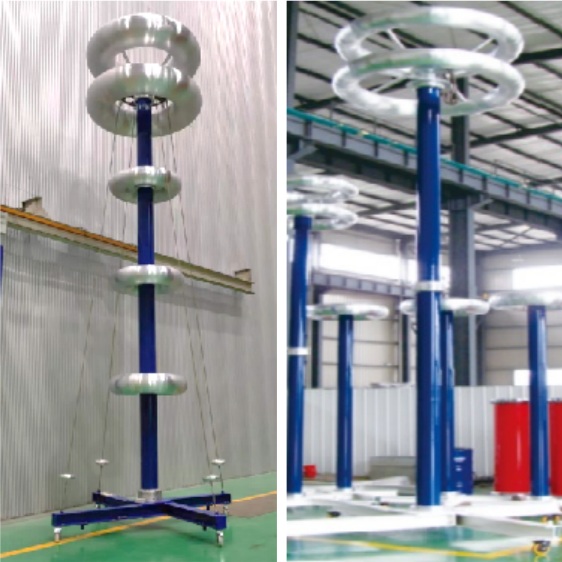

AC divider 600kV accuracy 0.5%

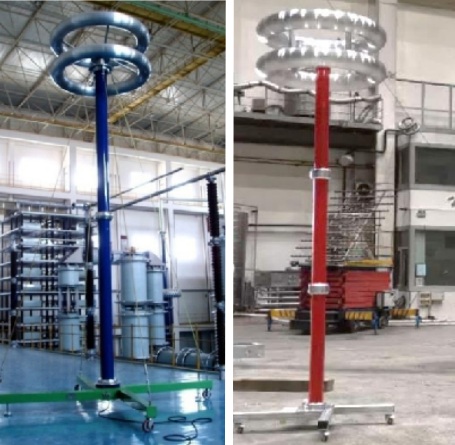

DC divider 1200kVaccuracy 0.05%
Waveform of TRV from breaker
Waveform of arc voltage from breaker
Resistive standard impulse divider



Voltage divider

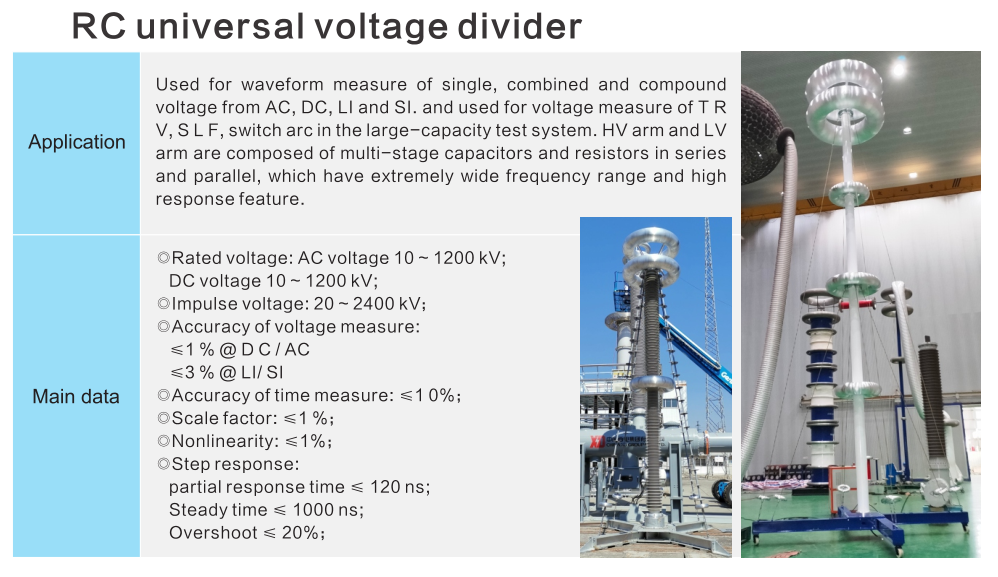

RC Universal Divider

Used for waveform measure of single, combined and compound voltage from AC, DC, LI and SI. and used for voltage measure of TRV, SLF, switch arc in the large-capacity test system.

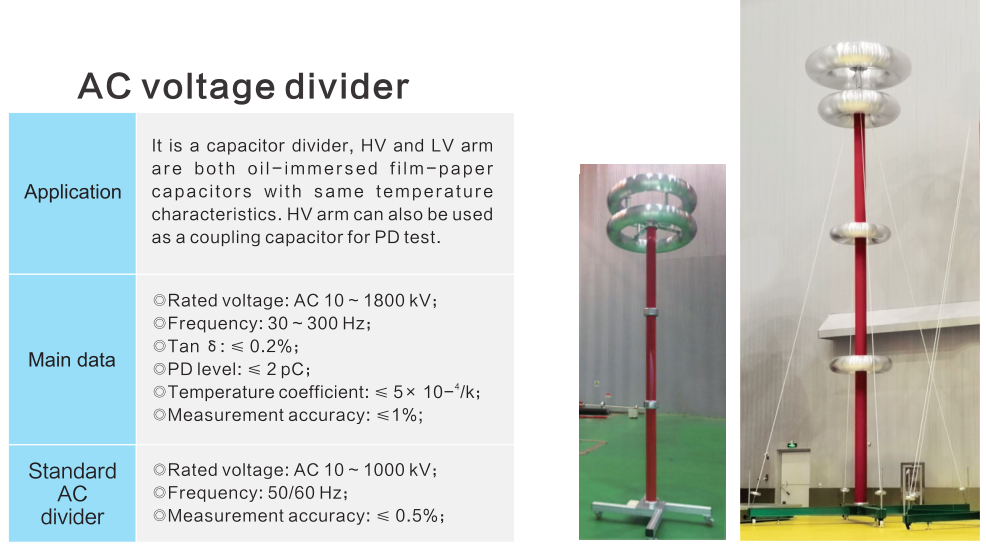

AC divider 600kV  accuracy 0.5%

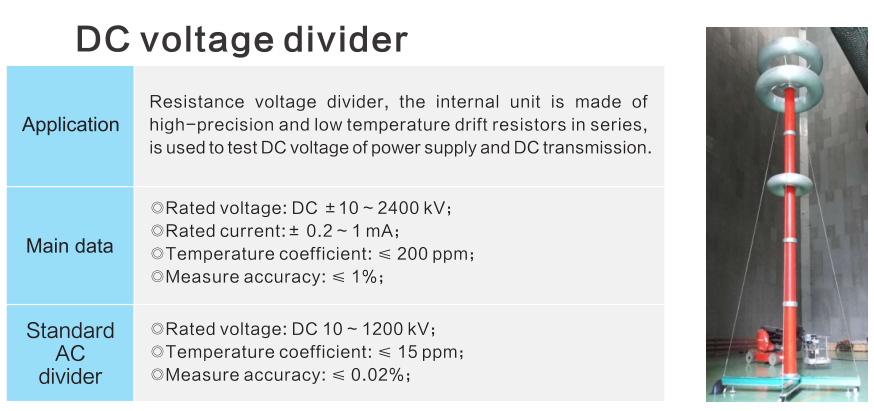

DC divider 1200kVaccuracy 0.05%

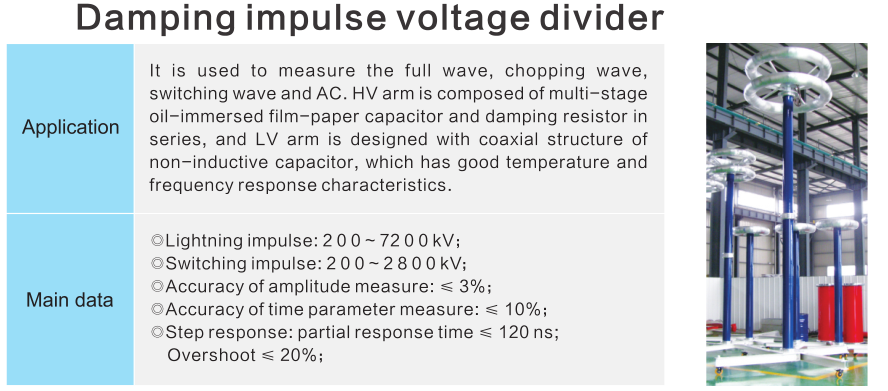

Damping impulse divider

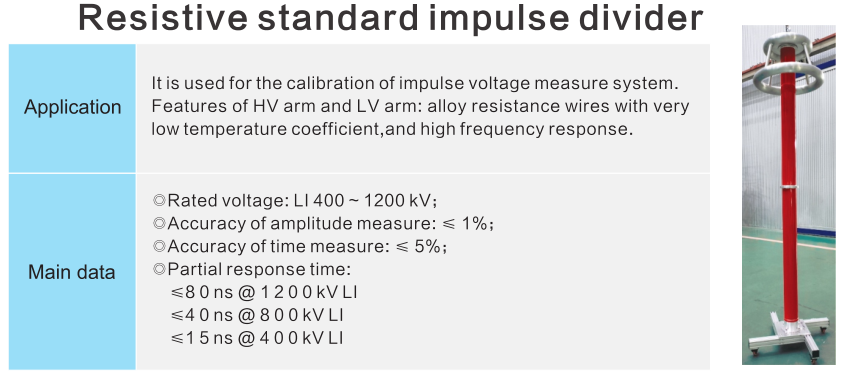

Resistive standard impulse divider
