Slitting Line For Transformer Lamination

A. Mother Coils Specifications slitting Line:

1. The slitting is design for slitting of CRGO & CRNGO Electrical Steel Coils

2. Material Tensile strength: σb≤440Mpa, σ0.2≤280Mpa

3. Material: Thickness: 0.23-0.5mm

4. Coil width: 600-1250 mm

5. Coil inside-diameter: Ф500mm ±20

6. The coil outside-diameter: 1200mm (max)

7. Coil weigh: 5t-8t (max)

B. Finished Product / Slit Coils Specification:

1. Coil inside-diameter: Ф500mm ±20

2. Coil outside-diameter: 1200mm (max)

3. Coil weight: 5t-8t (max)

4. Width tolerance: ±0.05 mm

5. Slitting width: 60mm (min)

6. The coil outside-diameter: 1200mm (max)

7. Coil weigh: 5t-8t (max)

8. Clearance between slitting Cutters inside-diameter and main slitting shaft outside-diameter: ≤0.05 mm.

This is to ensure proper slitting quality of coils.

C. Equipment Specification with Slitting Lines:

1. Electric power supply: 380V/50 Hz/3PH

2. Electric power capacity: About 80KW

3. Slitting speed: 0-150m/min

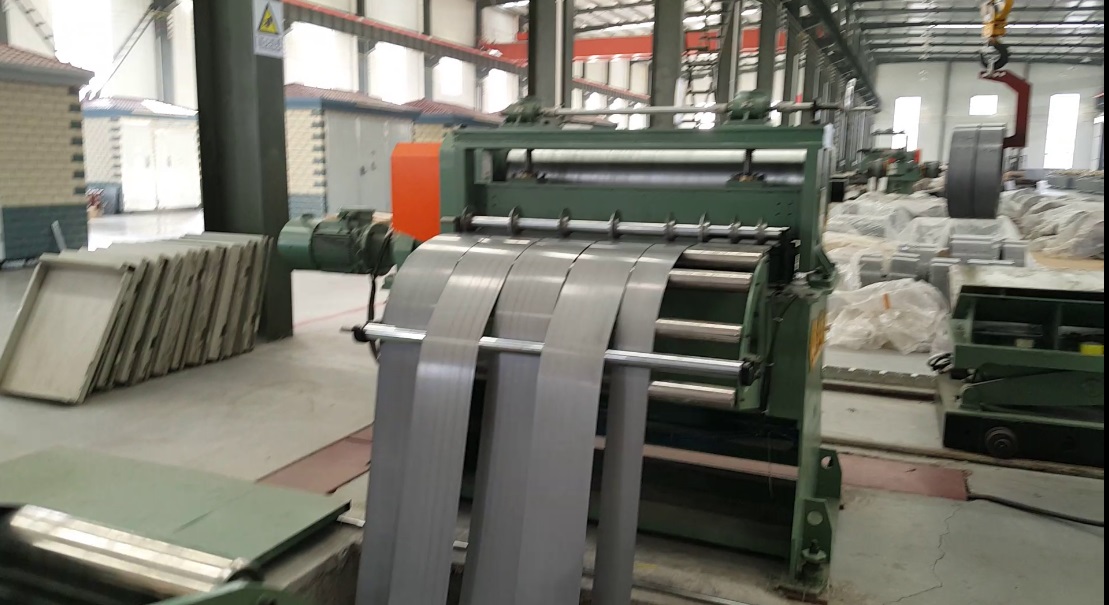

4. Slitting mechanism: Rotating Slitting Disc

5. Re-coiler director: Anti-clockwise

6. Gross Power: About 60KW

7. Control mode: Electromagnetic speed adjustment, PLC control

D. Machineries Assembly:

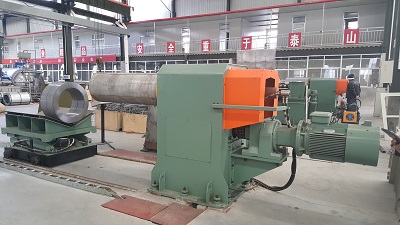

1. Hydraulic Un-coiler: 1 set

2. Un-coiler support arm: 1 set

3. Guard rail: 2 sets

4. Main slitting shaft: 1 set, 1250mm rotating slitting

Shaft with on-line grinding equipment.

5. Material feeding guide: 1 set

6. On-line length measurement equipment: 1 set

7. Pneumatic tensioning and separating shaft: 1 set, for un-coiler

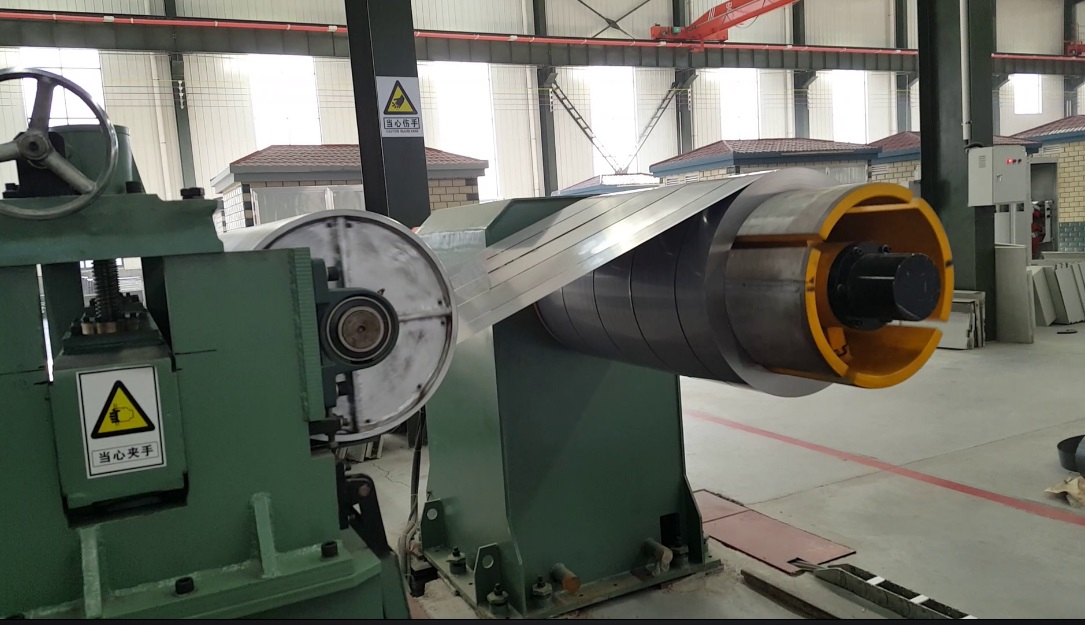

8. Re-coiler: 1 set

9. Re-coiler support arm: 1 set

10. Pneumatic system: 1 set

11. Lubrication system: 1 set

12. Electrical control system: 1 set
